Draft Tube for Small Hydraulic Power Plant in Radčice
A custom manufactured draft tube for a small hydraulic power plant in Radčice.
The draft tube of a direct flow water turbine consists of four horizontally placed parts: a draft tube cone and three parts of the draft tube.
The draft tube cone with a diameter of 1580 millimeters changes into a diameter of 1730 millimeters in a length of 1340 millimeters and at a weight of 658 kilograms. The draft tube itself is divided into three parts with a weight of 875, 924 and 1060 kilograms. The output dimension of the cone that is 1790 millimeters gradually changes into the profiles of 2250 x 2400 millimeters (the first part), 2350 x 2700 millimeters (the second part) and 2570 x 3100 millimeters (at the output of the third part). The total length of all draft tube parts (including the cone) that are assembled during the mounting in a location is 7155 mm.
The draft tube of a direct flow water turbine consists of four horizontally placed parts: a draft tube cone and three parts of the draft tube.
The draft tube cone with a diameter of 1580 millimeters changes into a diameter of 1730 millimeters in a length of 1340 millimeters and at a weight of 658 kilograms. The draft tube itself is divided into three parts with a weight of 875, 924 and 1060 kilograms. The output dimension of the cone that is 1790 millimeters gradually changes into the profiles of 2250 x 2400 millimeters (the first part), 2350 x 2700 millimeters (the second part) and 2570 x 3100 millimeters (at the output of the third part). The total length of all draft tube parts (including the cone) that are assembled during the mounting in a location is 7155 mm.
| Technical specifications | |
|---|---|
| Input dimension | diameter 1580 mm |
| Output dimension | oval 2570 x 3100 mm |
| Length | 7155 mm |
| Weight | 3.5 tons |

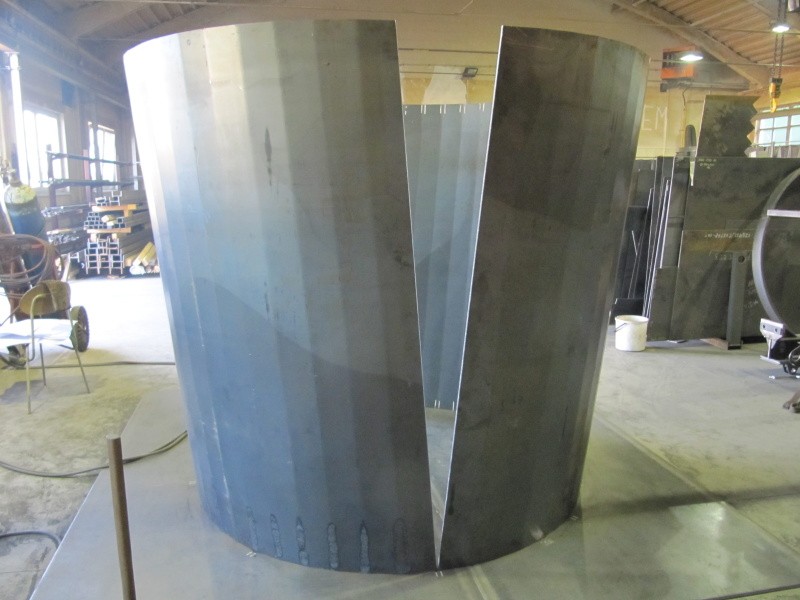

Sample pictures
